**Important Notes**
- DIY leverless controller kit. Assembly required.
- Buttons are not included.
- A USB Type-C to Type-A cable is required and not included.
- Standard PCB version: PC / Nintendo Switch / Switch 2. PS5 requires an authentication device.
- No PCB version: for Brook Gen-5 / Gen-5X Fighting Board (sold separately).
- Orders without a Layout ID will be processed with the default layout.
- Product photos show a prototype. Final appearance may vary slightly.

For overseas orders, international shipping options and total charges are shown at checkout. Import duties / VAT, if any, are the buyer's responsibility.

**JumpHack 11 – Product Concept**

The latest model developed as the successor to Aoi Kobo’s high-end controller, the “JumpHack 08-3rd.”
Supports fully customizable button layouts (optional), allowing complete freedom in your setup.

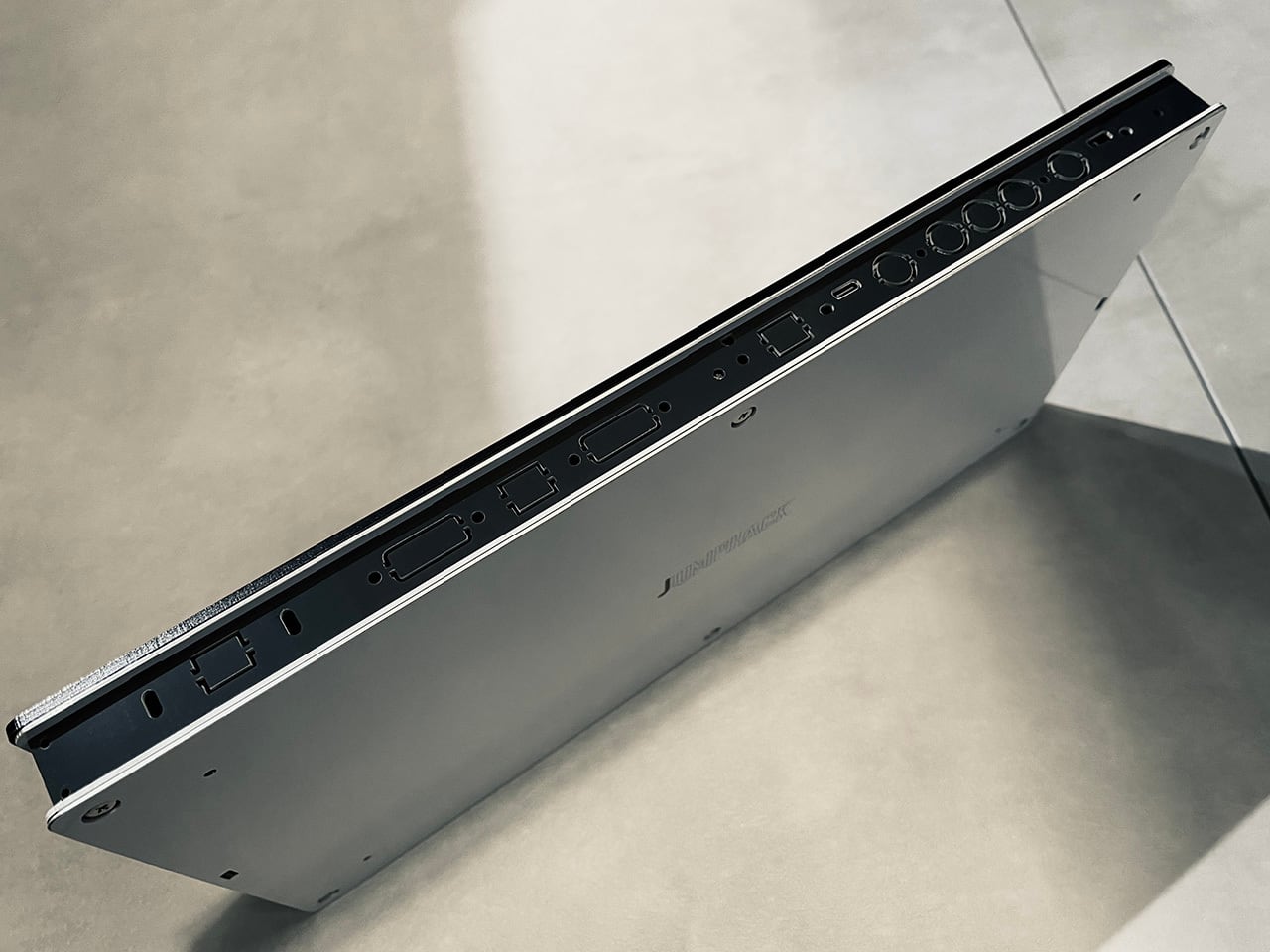

The main frame is built using metal square tubing, aluminum plates, and FR-4 material for maximum structural rigidity.
The top panel is made of acrylic, and the bottom panel features a magnetic opening system for easy access.

**Standard PCB Version — Included Parts / Specifications**

This standard kit is centered around an ultra-low latency main board powered by GP2040-CE.
All necessary core components are included except for buttons and the USB cable.

**Included:**

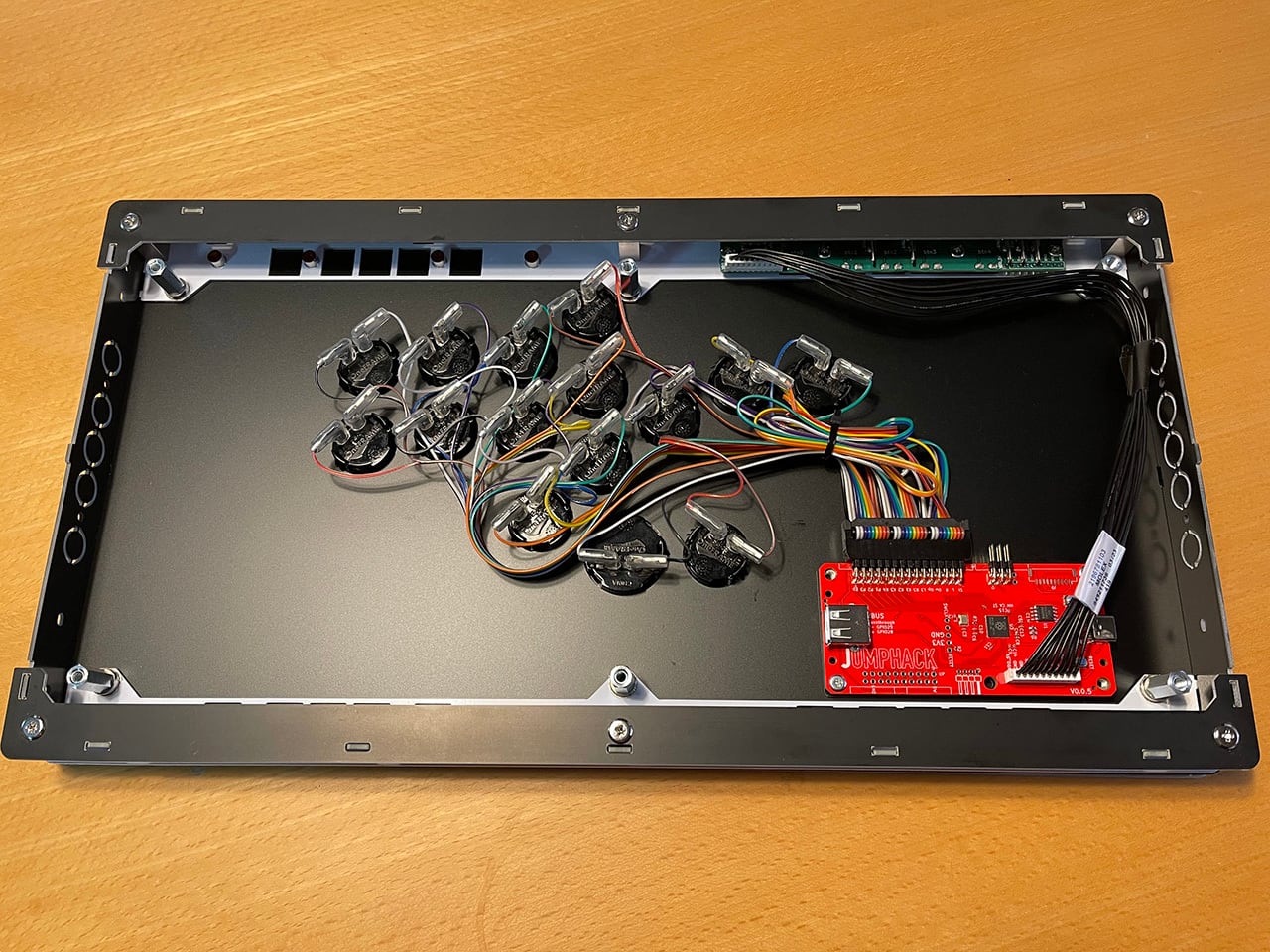

* Full case assembly (magnetic open/close design)
* Menu button PCB
* JumpHack main PCB (PC / Switch2 compatible, with USB passthrough port for PS5 authentication)
* 10-pin harness (main PCB ↔ menu PCB)
* 30-pin harness (main PCB ↔ button inputs)
* JumpHack PCB mounting parts

**Supported Modes:**

* PC (X-Input)
* Nintendo Switch / Switch 2
* PS5 (*requires authentication device*)

**Firmware:**

* GP2040-CE v0.7.10
Firmware manual: https://gp2040-ce.info/usage

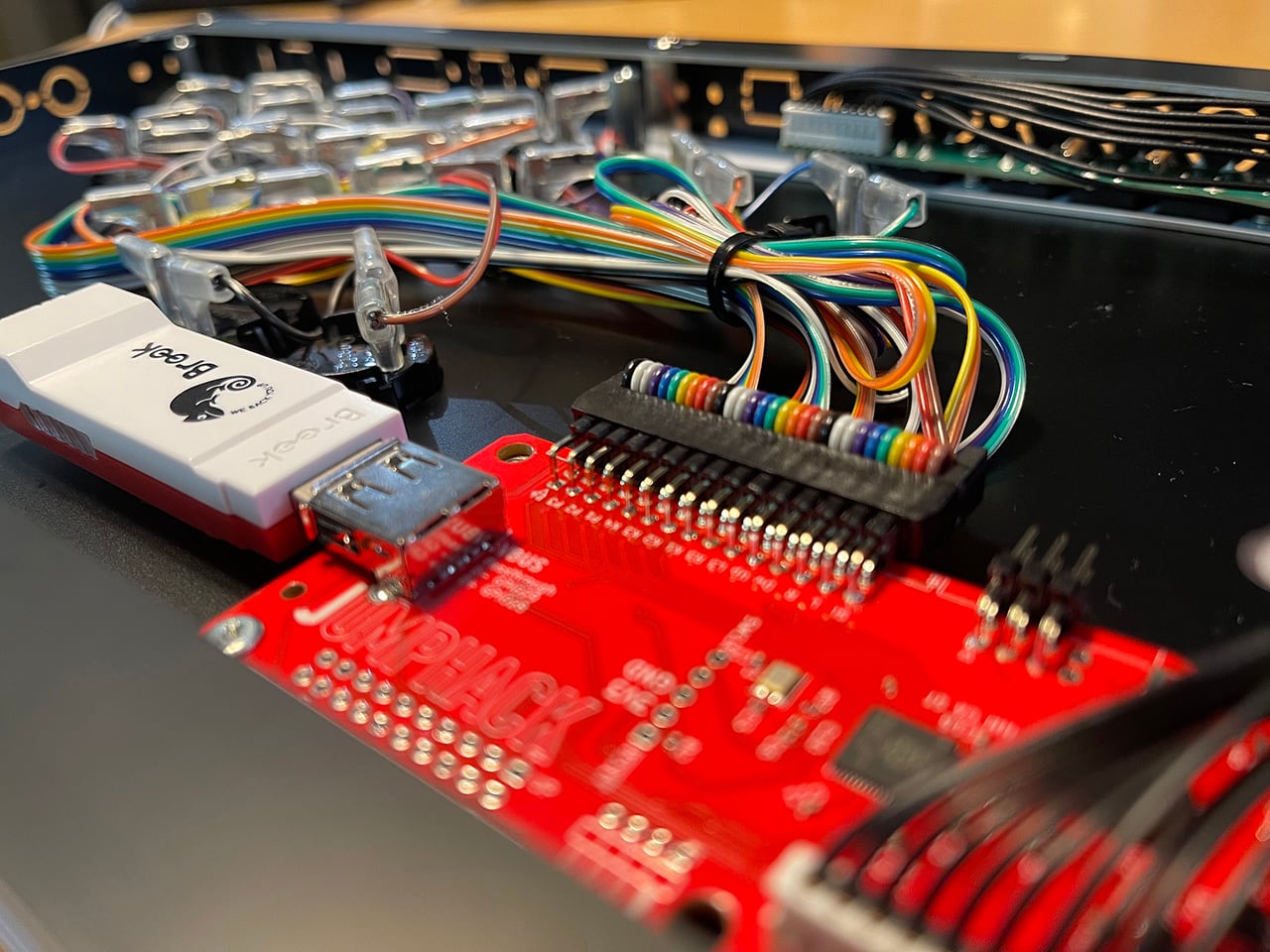

To use on PS5, an authentication device must be connected to the main PCB.
This is not a converter-based connection, so no additional input latency is introduced.

Recommended authentication device:
Brook Wingman FGC Fighting Stick Converter
https://amzn.to/4lOd35G

*PS5 passthrough settings are pre-configured at shipment, so no additional firmware setup is required.*

**No PCB Version — Included Parts / Requirements (for Brook Gen-5 / Gen-5X)**

This configuration is designed for advanced users who want to install a Brook PCB, widely used by professional players.

**Included:**

* Full case assembly (magnetic open/close design)
* Menu button PCB
* Brook PCB bridge components
* 30-pin harness (main PCB ↔ button inputs)
* 4-pin harness (main PCB ↔ button inputs)
* 10-pin harness (main PCB ↔ Menu button PCB)
* JumpHack PCB mounting parts

*Please note: A Brook “Gen-5 Fighting Board” or “Gen-5X Fighting Board” is required separately.*
Amazon: https://amzn.to/3MUlnUw

---

**Button Layout Customization**

Custom button layouts are now available **at no additional cost**.

You can create a fully customized, one-of-a-kind layout using the tool below.
Please make sure to enter your **Layout ID** in the order notes when purchasing.

⚠️ Orders without a Layout ID will be processed with the default layout.

Layout Editor:
https://app.jumphack.jp/button-layout-lab/11-xl

---

**Assembly Guide**

Step-by-step assembly instructions are available here:
https://note.com/isomeaoi/n/n02e1b92d3972

---

**About the 30-Pin Button Harness**

The included harness uses L-shaped connectors optimized for Sanwa buttons and OneFRAME modules.

Please note:
“PWS Blaze Spark” (released after November 2025, with horizontal terminals) is not compatible with L-shaped connectors.
In this case, please use the separately sold straight-connector harness.

---

**Connection to Console / PC**

A USB Type-C to Type-A cable is required (not included).

**Notes**

* Minor scratches may be present on the inner side of the aluminum bottom plate and other aluminum parts due to the manufacturing process. This is normal and not considered a defect.

* Due to the characteristics of laser cutting, a cloudy or hazy effect may appear around the cut edges of the acrylic panels. This is more noticeable on clear acrylic.

* Some parts of this product are painted. The paint may fade or transfer if exposed to alcohol (ethanol, IPA), disinfectant wipes, or solvents.
For cleaning, please use only a soft, dry cloth.
Color changes caused by such exposure are due to the material properties and are not considered defects.

---

**Dimensions**

* Slim model: approx. 396 × 206 × 27.5 mm
* Thick model (compatible with Sanwa buttons): approx. 396 × 206 × 42.5 mm

---

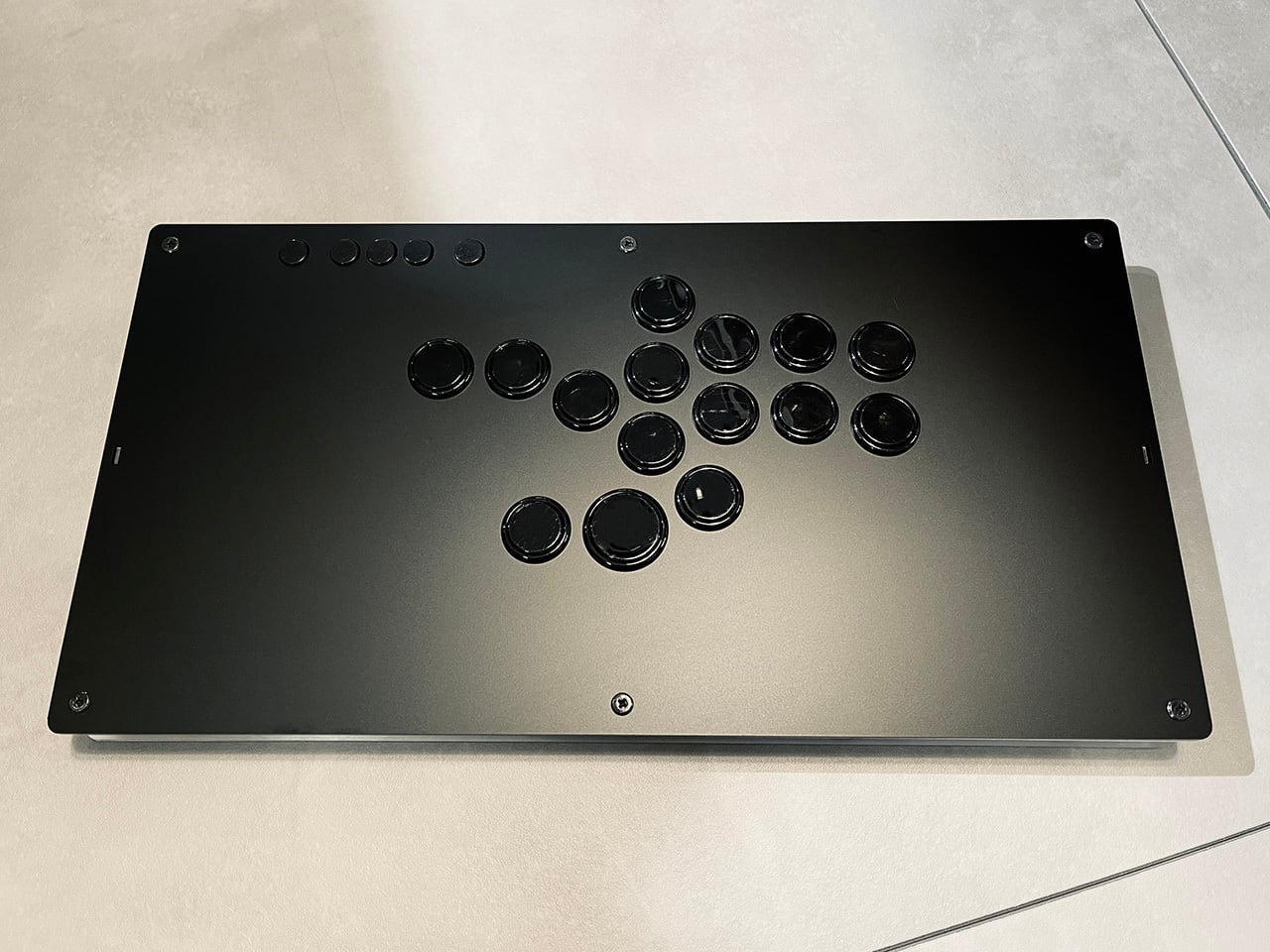

Top Panel Color

The top panel is made of acrylic and comes in a matte black finish.

---

**Side Color**

* Slim model: Black
* Thick model (Sanwa-compatible): White

---

**Warranty**

* 90 days
